Pro PCTG-GF vs Pro PCTG-CF vs Standard PCTG: Independent Testing Reveals Surprising Results

When most makers think about fiber-reinforced filaments, they expect one thing: more stiffness.

What they don't expect is better impact resistance and stronger layer adhesion.

In a recent independent evaluation by My Tech Fun, 3D-Fuel's Pro PCTG-GF (Glass Fiber) and Pro PCTG-CF (Carbon Fiber) were put head-to-head against standard Pro PCTG in a comprehensive series of mechanical tests. The results revealed significant improvements in stiffness, temperature resistance, and strength, along with some unexpected performance advantages.

The Materials Tested

The comparison included:

• 3D-Fuel Pro PCTG

• 3D-Fuel Pro PCTG-GF (10% Glass Fiber)

• 3D-Fuel Pro PCTG-CF (10% Carbon Fiber)

All samples were printed using the manufacturer's recommended settings after drying at 65°C for 6 hours.

The goal was to evaluate how fiber reinforcement affects real-world mechanical performance.

Printability Remained Excellent

One of the first observations was that all three materials printed exceptionally well.

According to the reviewer:

• Printing was flawless across all three materials.

• Both fiber-reinforced versions produced excellent surface quality.

• The fibers helped conceal layer lines.

• Dimensional accuracy remained outstanding.

For users printing functional parts, this means you can gain significant mechanical advantages without sacrificing print quality.

Carbon Fiber Delivered the Highest Strength

In tensile testing, Pro PCTG-CF emerged as the strongest material tested.

Ranking:

1. Pro PCTG-CF

2. Standard Pro PCTG

3. Pro PCTG-GF

While the glass fiber version was slightly weaker in pure tensile strength, it still delivered strong overall mechanical performance throughout the test program.

A Surprising Layer Adhesion Result

One of the most unexpected findings involved layer adhesion.

Fiber-reinforced materials often suffer from weaker interlayer bonding because the fibers can interrupt layer fusion.

That wasn't the case here.

Both Pro PCTG-GF and Pro PCTG-CF demonstrated stronger layer adhesion than standard Pro PCTG.

The reviewer, Dr. Igor Gaspar, specifically called this a "very pleasant surprise."

This result may be partially attributed to the lower cooling settings used for the fiber-reinforced profiles, allowing stronger layer fusion during printing.

For makers producing load-bearing parts, improved layer adhesion can be just as important as increased material strength.

Bending Performance Was Dramatically Better

This is where the fiber-reinforced materials truly separated themselves.

During multiple bending tests:

• Pro PCTG-CF showed the least deformation.

• Pro PCTG-GF ranked second.

• Standard Pro PCTG showed the greatest deflection.

Under sustained loads, carbon fiber reinforced PCTG exhibited minimal movement compared to standard PCTG.

For structural applications where stiffness matters, the difference was substantial.

Bending Strength Ranking

1. Pro PCTG-CF

2. Pro PCTG-GF

3. Standard Pro PCTG

Elastic Modulus Ranking

1. Pro PCTG-CF

2. Pro PCTG-GF

3. Standard Pro PCTG

If your goal is maximum rigidity and dimensional stability, Pro PCTG-CF was the clear winner.

Impact Resistance Defied Expectations

Perhaps the biggest surprise of the entire evaluation was the impact testing.

Normally, adding fibers increases stiffness but reduces toughness.

Instead, both Pro PCTG-GF and Pro PCTG-CF outperformed standard Pro PCTG in the impact tests.

The reviewer specifically noted that this was another unexpected result because fiber-reinforced materials are typically more brittle.

For users printing functional parts that may experience drops, shocks, or repeated impacts, this is an extremely valuable characteristic.

Better Long-Term Creep Resistance

Creep is the tendency for a material to slowly deform under constant load over time.

In a multi-day creep test:

• Standard Pro PCTG exhibited the most deformation.

• Pro PCTG-GF significantly reduced deformation.

• Pro PCTG-CF showed the least deformation.

For brackets, mounts, fixtures, and mechanical components that remain under load for extended periods, this improvement can dramatically increase long-term dimensional stability.

Excellent Heat Resistance

The temperature testing delivered another standout result.

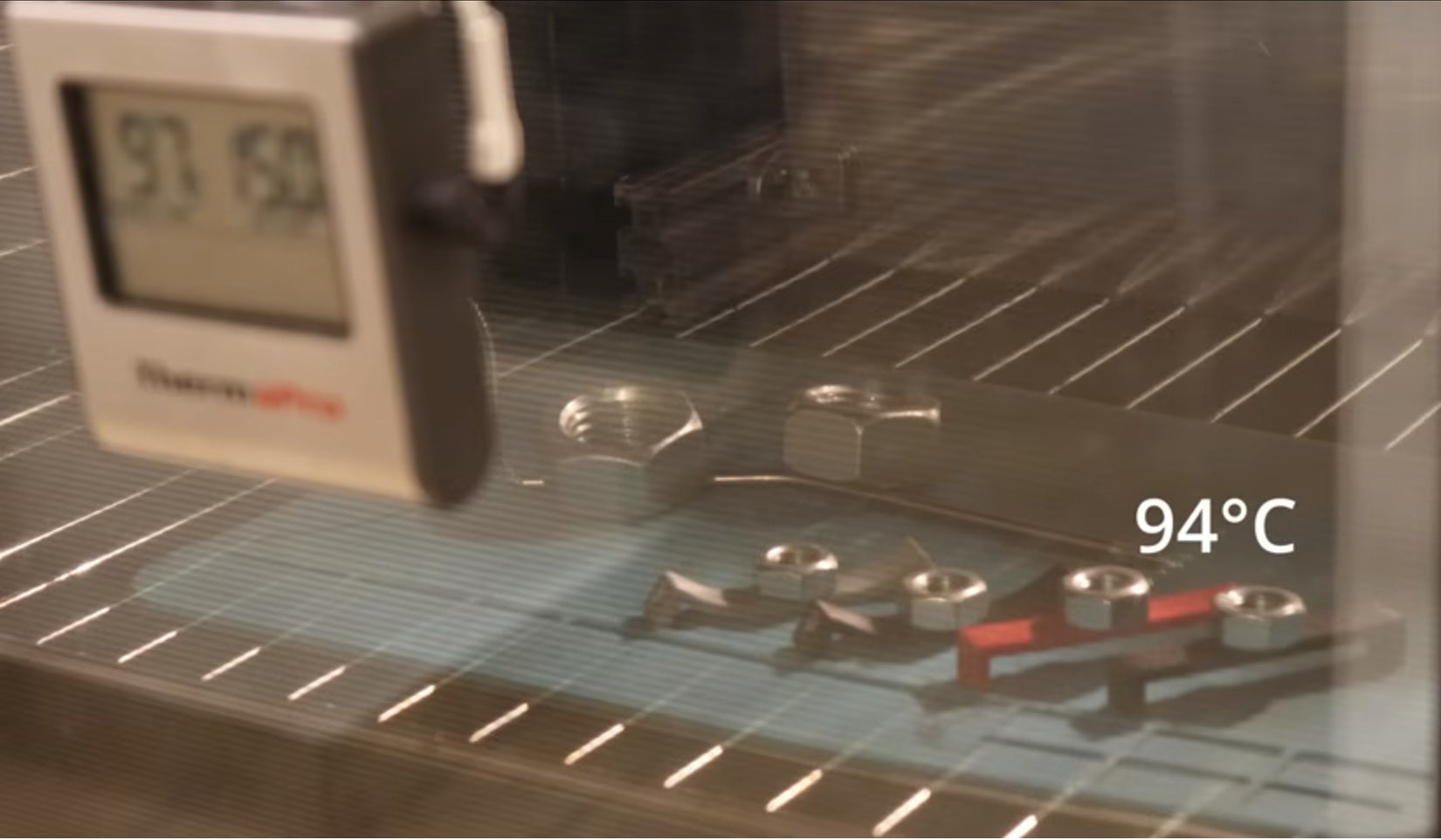

The fiber-reinforced PCTG materials began showing deformation at approximately 94°C.

The reviewer specifically noted that the increase in temperature resistance was larger than expected.

For applications exposed to elevated temperatures, the reinforced versions provide a significant advantage over traditional consumer-grade filaments.

Carbon Fiber vs Glass Fiber: Which Should You Choose?

Choose 3D-Fuel Pro PCTG-CF If You Want:

• Maximum stiffness

• Highest tensile strength

• Lowest creep

• Best bending performance

• Dark matte aesthetic

Choose 3D-Fuel Pro PCTG-GF If You Want:

• Excellent stiffness

• Strong layer adhesion

• Better color options

• Lighter color availability

• Glass fiber-specific processing advantages

Final Verdict

After extensive testing, the reviewer concluded that both fiber-reinforced Pro PCTG materials were impressive performers.

While Pro PCTG-CF was the strongest material in most categories, Pro PCTG-GF remained highly competitive and offered several unique advantages.

Most importantly, both materials delivered benefits that many makers would not expect from fiber-reinforced filaments:

• Improved layer adhesion

• Increased impact resistance

• Excellent printability

• Outstanding dimensional stability

• Significant gains in stiffness and heat resistance

For engineers, makers, and professionals printing functional parts, both Pro PCTG-CF and Pro PCTG-GF represent a substantial performance upgrade over standard PCTG.

If maximum performance is your goal, Pro PCTG-CF takes the crown. If you need excellent mechanical properties while retaining more color flexibility, Pro PCTG-GF is an outstanding choice.
